Industrial Reverse Osmosis (RO) Systems

Reverse Osmosis may be the perfect water purification method for your needs. Get in touch with us today for the manufacture or installation of your industrial RO system.

Reverse osmosis is an increasingly popular solution in water purification. In many cases, it has replaced conventional chemical deionisers. RO is popular because it removes the requirement to hold aggressive regeneration chemicals at the client’s premises. It also does not produce a chemical effluent discharge. For many industries, the security of an RO (Reverse Osmosis) membrane is attractive as is the ability to readily validate the performance of the membrane.

Our RO systems are some of the best on the market and operate at a reliable 70% efficiency with low energy membranes. This means that for every 100 L of impure water you put through the water purification system, you get 70 L of pure water to service, which is a pretty good ratio.

You may find some companies promising you 80% efficiency, but you should be careful of these, as it simply means that their systems force the membranes to work harder. The result is that the membranes do not last as long and need to be replaced more frequently, thus reducing the overall cost-effectiveness of the water purification system. You should also be very careful of cheaply marketed RO systems, as not all RO processes are created equal. We have come across bargain-basement systems that have an efficiency of 25% or less. These are simply not worth your money and time.

Page Contents:

reverse osmosis ro water purification system

Download Our FREE Complete Guide to Industrial Water Purification Systems

Watch our Quick Guide to Reverse Osmosis:

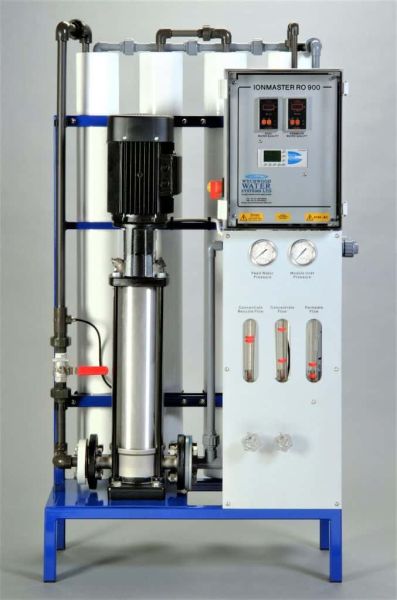

Our IONMASTER range provides pure water flows up to 30m3/hour. Of robust construction, they give reliable and quality service and use low energy membranes to minimise operating costs. They can be equipped with extensive water quality monitoring and data-logging.

How Reverse Osmosis Works

The osmosis process is a naturally-occurring phenomenon where less concentrated saline solution tends to migrate to a more concentrated solution. Osmosis occurs everywhere in nature, from our kidneys absorbing water from our blood, to plant roots absorbing water.

A semipermeable membrane, usually made of thin-film polyamide is used to clean water which is pumped past its input side under pressure of up to 15 bar and up to 220 psi in a cross-flow direction. From 15 to 70% of the water that passes through the membrane will do to permeate, while the remainder leaves the membrane as a concentrate containing 99% + of the feedwater TDS.

Reverse osmosis is the same process mentioned above but in reverse. This type of system will remove 99% of organic and inorganic contamination.


However, Reverse Osmosis does not work on its own. The purification process is only as good as the pre-treatment of the water that is feeding it. Certain contaminants will damage Reverse Osmosis, including free chlorine, calcium and magnesium.

So you have to pretreat the freed water with activated carbon to remove the free chlorine and then a water softener to strip out the calcium and magnesium before it can be put through the RO system.

If you fail to do this, then the free chlorine in the water will degrade the membrane and let organic contaminants through, and the calcium and magnesium will scale the membrane up, reducing its efficiency and working life.

This is the reason many industries consider Reverse Osmosis to be wasteful, time-consuming and expensive. The conventional alternative is deionisation.

Applications for Reverse Osmosis WATER PURIFICATION

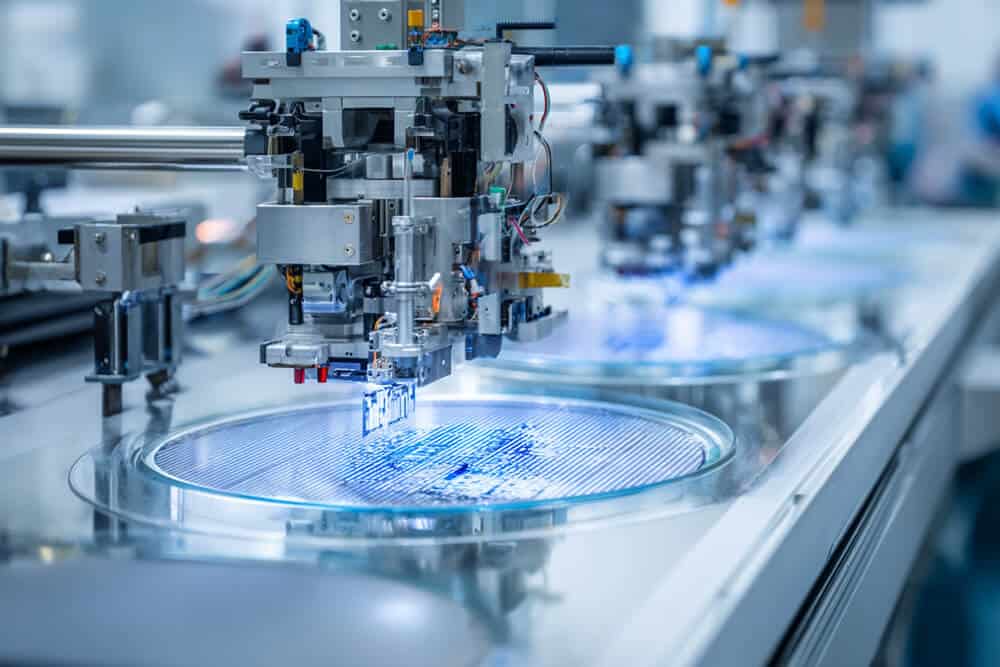

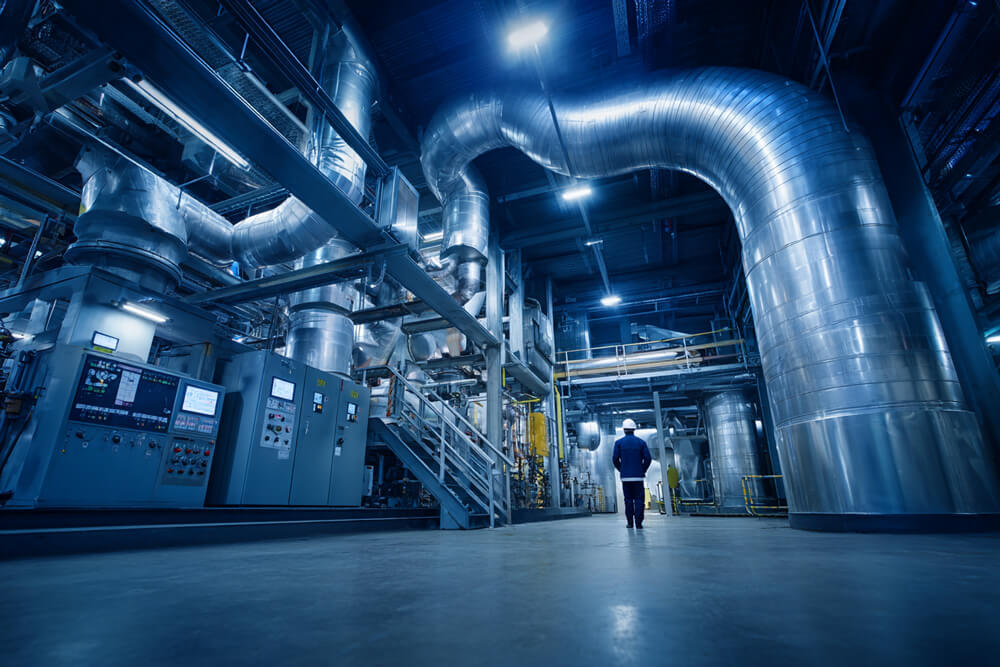

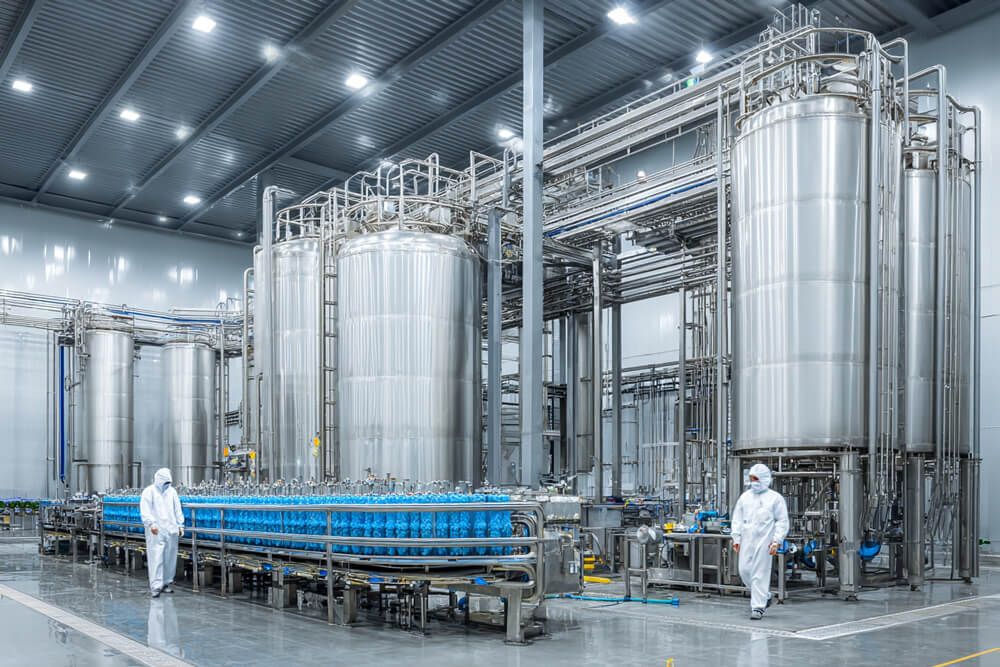

Reverse osmosis systems are typically used to treat surface, ground and brackish water from small to large flows. Many industries use the reverse osmosis system to treat their water. These industries include metal finishing, boiler feed water, semiconductor manufacturing and pharmaceutical.

Vulnerabilities OF RO PURIFICATION

All RO purification systems depend on good pre-treatment to the feed water. This is achieved by the use of Organic Scavengers, Activated carbon media and base exchange Water Softeners. It is true to say that excellent pre-treatment is a requirement for long, reliable and efficient Reverse Osmosis operation.

Reverse Osmosis membranes will not tolerate any form of hydraulic shock. RO must be installed in a carefully designed water purification system with all of the necessary safeguards and monitoring.

This is where an ongoing partnership with the experts at Wychwood Water Systems will pay dividends.

A chemical attack happens when a membrane comes into contact with an oxidiser like chlorine, which will burn the membrane and affect performance. Activated carbon is a prerequisite for this purpose.

Advantages and Disadvantages OF REVERSE OSMOSIS

A reverse osmosis system effectively removes contaminants like pyrogens and colloids and is easy to monitor and confirm performance.

The waste stream, (concentrate) is flushed to drain during plant operation. Because of this 70% of the feed water is recovered as purified water, (permeate).


If you are unsure about the benefits of reverse osmosis for your application, our team members can help. They can not only recommend the right water purification system for you, but can also answer your questions about any type of purified water system and technology available.

Visit our contact page to view some of our reverse osmosis systems or get in touch with us via email or phone.

3 Common Mistakes

You can invest in the perfect reverse osmosis (RO) system and still achieve inferior results. Here are the top 3 mistakes to avoid.

  1. Inferior Installation
  2. Irregular Servicing
  3. Choosing A Poorly Designed Plant
